Fast-Response Thermocouples

Ultra-fine thermocouples (Fine)

Excellent responsivity and high precision measurement due to small heat capacity.

Thermocouple with thin wires (13μm,25μm, or 50μm in diameter) connected to the sheathed lead wire.
Suitable for temperature measurement of fine areas or gases.

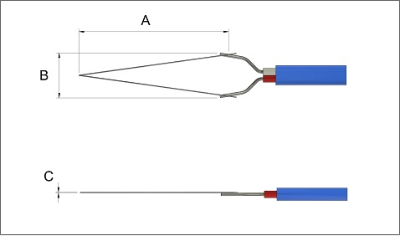

A. Tip length (Std size)
Approx. 10 mm

C. Tip diameter (Std size)	B. Tip width (Std size)	Price
13μm	Approx. 3 mm	Contact for the price
25μm
50μm

Responsivity: ◎, Strength: △

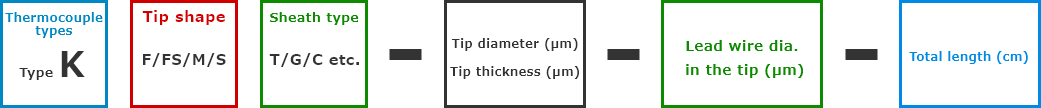

Example: KFG-25-200-200

Type-K / Ultra-fine / Glass sheathed / Tip diameter 25μm / Sheathed lead wire diameter 200μm / Total length approx. 2m

Ultra-fine Thermocouples: Model No. and Specifications

Ultra-fine thin thermocouples (Fine-Sheet)

Suitable for surface temperature measurement of minute parts.

Thin tipped thermocouple based on the ultra-fine thermocouple.
Excellent in response and capable of high-precision measurement.

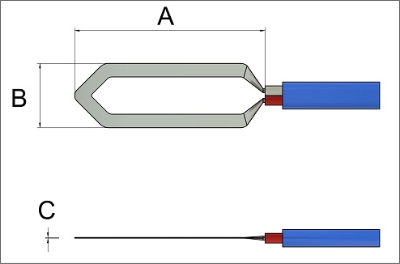

A. Tip length (Std size)
Approx. 10 mm

C. Tip thickness (Std size)	B. Tip width (Std size)	Price
Approx. 10 μm	Approx. 3 mm	Contact for the price
Approx. 20 μm	Approx. 3 mm	Contact for the price

Responsivity: ◎, Strength: △

Example: KFSG-10-200-200

Type-K / Ultra-fine thin / Glass sheathed / Tip thickness 10μm / Sheathed lead wire diameter 200μm / Total length approx. 2m

Ultra-Fine Thin Thermocouples: Model No. and Specifications

Ultra-thin thermocouples (Sheet)

Suitable for temperature measurement of plane, curved and other surfaces of the metal plates and other parts.

Thermocouples with only about 10mm thin tip (sheet type).
Excellent in response and durable due to their integrated structure.

A. Tip length (Std size)
Approx. 10 mm

C. Tip thickness (Std size)	B. Tip width (Std size)	Sheathed lead wire diameter	Price
Approx. 20 μm	2～3mm	100μm	Contact for the price
Approx. 40 μm	Approx. 3 mm	100μm 150μm 200μm
Approx. 60 μm	3～4mm	320μm

Responsivity: 〇, Strength: 〇

Example: KST-40-200-300

Type-K / Ultra-thin / Teflon sheathed / Tip thickness 40μm / Sheathed lead wire diameter 200μm / Total length approx. 3m

Ultra-Thin Thermocouples: Model No. and Specifications

Multi-purpose thermocouples (Multi-Purpose)

Most robust among all of our thermocouples.

With a non-spherical junction, the thermocouples provide a better response than conventional thermocouples.

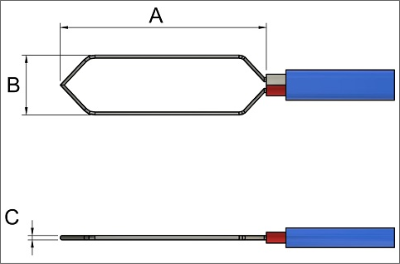

A. Tip length (Std size)
Approx. 10 mm

C. Tip diameter (Std size)	B. Tip width (Std size)	Price
100μm	2～3mm	Contact for the price
150μm
200μm
320μm	3～4mm

Responsivity: △, Strength: ◎

Example: KMT-100-100-100

Type-K / Multi-purpose / Teflon sheathed / Tip diameter 100μm / Sheathed lead wire diameter 100μm / Total length approx. 1m

Multi-Purpose Thermocouples: Model No. and Specifications

Types and Features of Thermocouple Sheaths

Glass [G]

Low cost and easy to use. Can be used in a non- condensing environment.

Sheathed lead wire diameter (μm)	Sheath approximate O.D. (mm)	Flexibility	Measurement range (°C)	Code
100	0.8×1.2	〇	Ambient to 250	G
150	0.5 × 0.7	◎
200	0.9 × 1.3	○
320	1.4 × 2.3	×

More details

Teflon [T]

Water proof and chemical resistant. Suitable for use in a cleanroom.Most flexible Teflon super fine wire and Teflon twisted wire with noise reduction are also available.
