Tip Options
| Type | No. | Photo | Figure | Use |
|---|---|---|---|---|

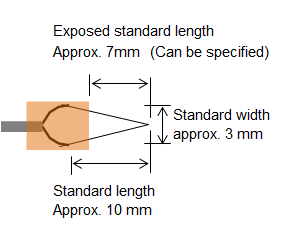

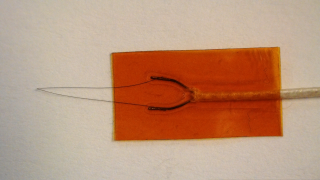

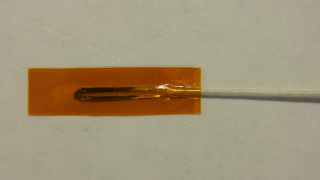

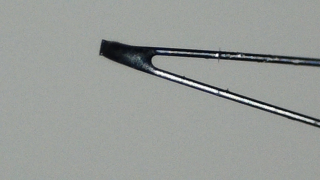

| Reinforcement with kapton tape | (R) |  |
 |
Improve the tip strength while keeping response high. |
| Insulation coating | (IC) |  |
Prevention of shortcut to temperature measurement areas. | |
| Tip soldering | (S) |  |
Soldering the thermocouple tip to the measuring object | |

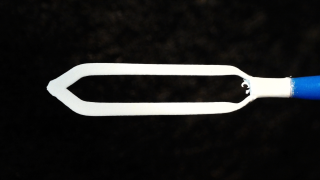

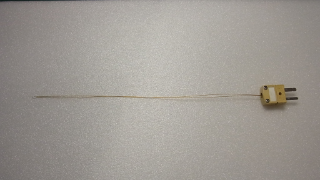

| Kapton tape cover | (KC) |  |
Protect strength of the tip |
Terminal Options
| Type | No. | Photo | Figure | Use |
|---|---|---|---|---|
| Omega’s miniature connectors SMPW |

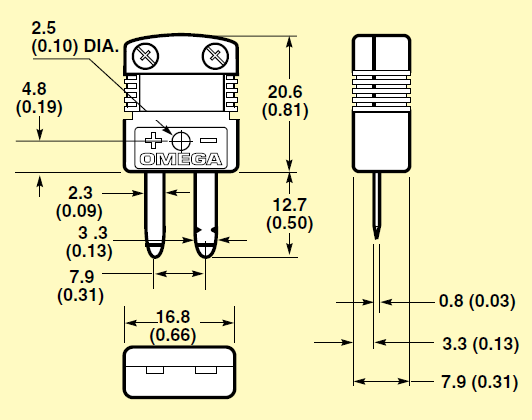

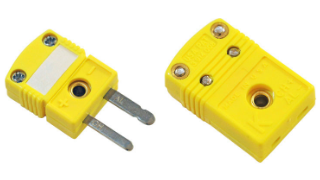

(Type-C male) |  |
 |
Heat resistant up to 180 °C |

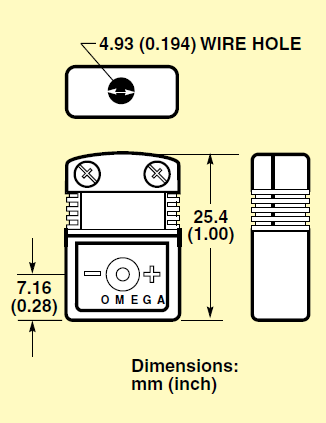

| (Type-C female) |  |
|||

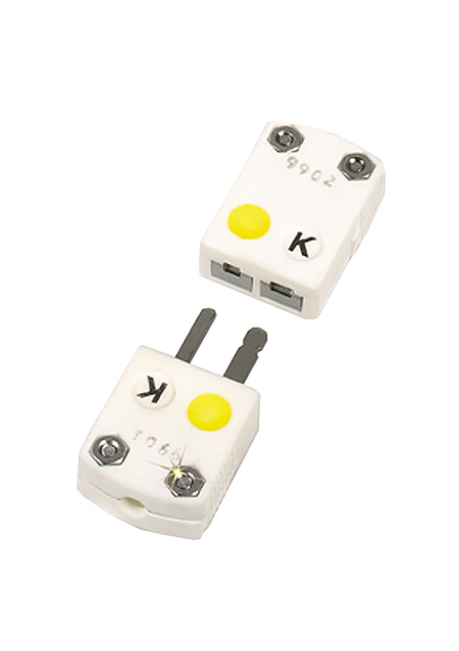

| Omega’s miniature connectors HMPW |
(Type-C male) |  |
Refer to the figure of SMPW (Type-C male). | Heat resistant up to 260 °C |
| (Type-C female) | Refer to the figure of SMPW (Type-C female). | |||

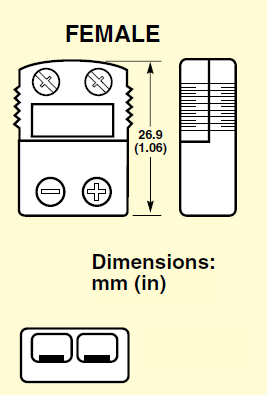

| Omega’s miniature connectors SHX |

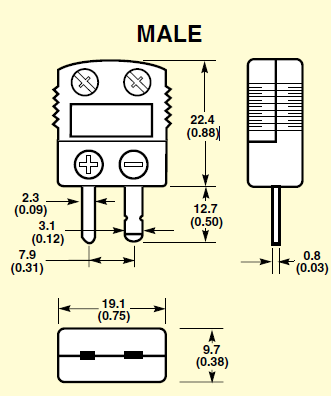

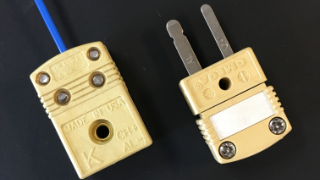

(Type-HC male) |  |
 |
Heat resistant up to 650 °C |
| (Type-HC female) |  |
|||

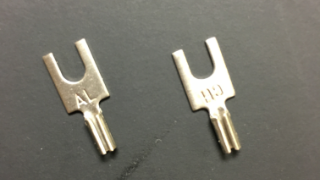

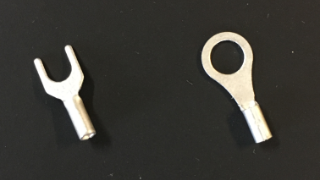

| Simple copper Y terminals | (YY) |  |
Mounting of the Y terminal (M3/M4), round terminal or other type of terminal. For other types, contact ANBE SMT. |
|
| Type K thermocouple Y terminals (M4) | (Y) |  |
Mounting of the Y terminal (M4) made of thermocouple material. One side of the terminal can be cut off and processed to connect the terminal to the terminal block for M3. |
|

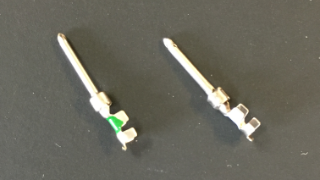

| Multi-pins connectors | (MP) |  |
Mounting of Omega’s SMTC series connector made of thermocouple material. |
Other Options
| Type | No. | Photo | Figure | Use |
|---|---|---|---|---|
| Insulation with polyimide tube |  |
Bare wire insulation | ||
| Calcination treatment | Order for one (F1) |
 |
Preventing smoke when in use due to advance calcination | |
| Order for two or more (F2) |
||||

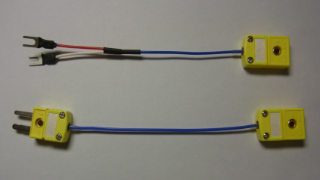

| Compensation lead wire |  |
To make the total length of the thermocouple wire longer. | ||

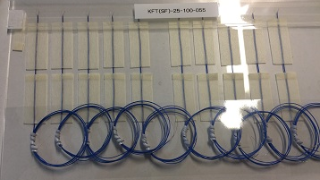

| Plastic plate packaging | (PP) |  |
Allows you to carry the thermocouple to a cleanroom. |
