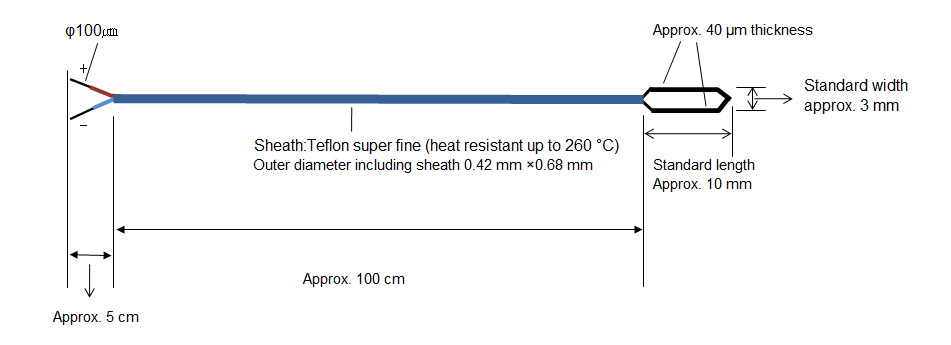

KST(SF)-40-100-100 Specifications
If you want to change the specification, etc., please contact us.
*All dimensions are target values, and are not guaranteed.
Model No. of Thermocouples with Option
| Option | Model No. |
|---|---|
| Type K thermocouple Y terminal (Y) M4 | KST(SF)-40-100-100(Y) |
| Simple copper Y terminal （YY）(If not specified, use M3) | KST(SF)-40-100-100(YY) |
| With Omega’s miniature connector SMPW (Type-C male) | KST(SF)-40-100-100(Type-C male) |
For thermocouple options, click here.
