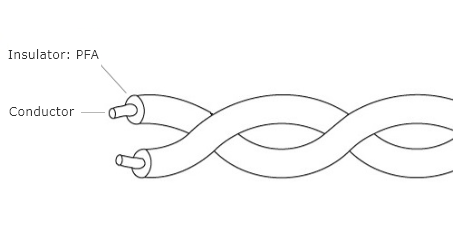

Cross Sectional View
| Conductor (μm) | Sheath approximate O.D. (mm) |
|---|---|
| 100 | 0.4×0.8 |
| 200 | 0.5×1.0 |
| 320 | 0.6×1.2 |
Features
Heatproof temperature: -200~260 °C
Fluororesin insulated thermocouple wires.
Two thermocouple wires are a twisted pair, which makes the sheathed heat capacity small and the wires flexible.
