KMT(SF)-100-100-100 Specifications

If you want to change the specification, etc., please contact us.

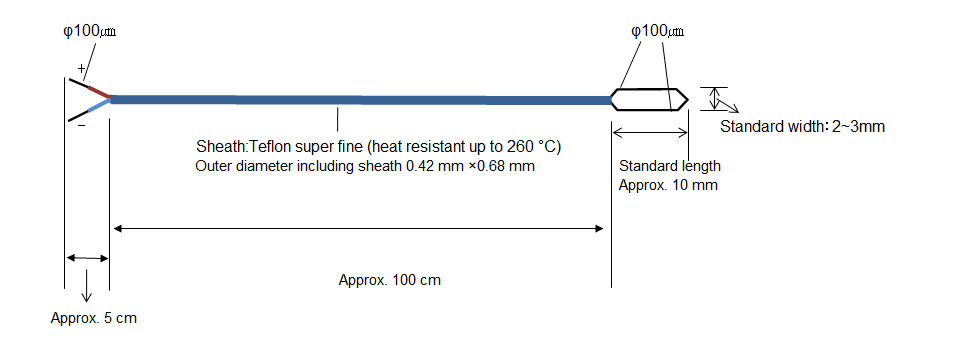

KMT(SF)-100-100-100
*All dimensions are target values, and are not guaranteed.

Model No. of Thermocouples with Option

Option Model No.
Type K thermocouple Y terminal (Y) M4 KMT(SF)-100-100-100(Y)
Simple copper Y terminal (YY)(If not specified, use M3) KMT(SF)-100-100-100(YY)
With Omega’s miniature connector SMPW (Type-C male) KMT(SF)-100-100-100(Type-C male)

For thermocouple options, click here.
