KFT-25-200-100 Specifications (Ultra-Fine Thermocouple)

← Return to "Ultra-fine Thermocouples: Model No. and Specifications"

KFT-25-200-100 Specifications

If you want to change the specification, etc., please contact us.

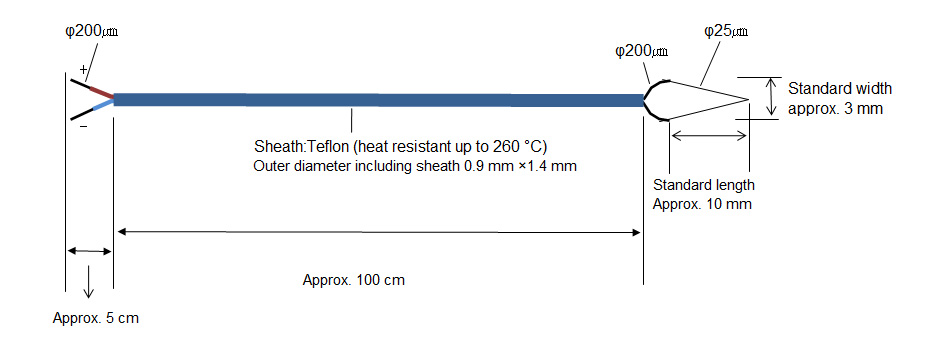

KFT-25-200-100
*All dimensions are target values, and are not guaranteed.

Model No. of Thermocouples with Option

Option Model No.
Type K thermocouple Y terminal (Y) M4 KFT-25-200-100(Y)
Simple copper Y terminal (YY)(If not specified, use M3) KFT-25-200-100(YY)
With Omega’s miniature connector SMPW (Type-C male) KFT-25-200-100(Type-C male)

For thermocouple options, click here.
